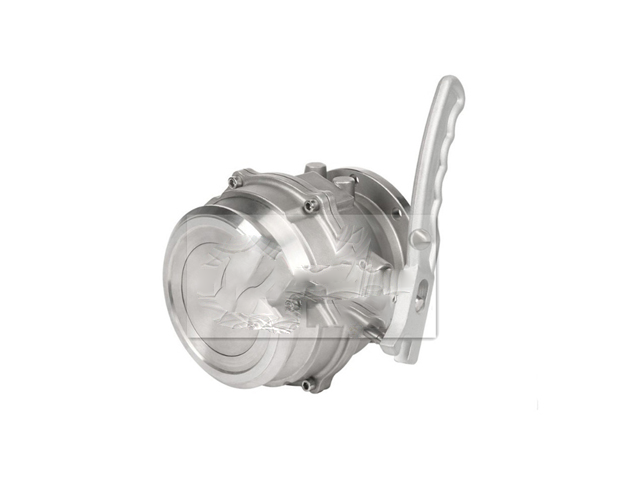

API adaptor valve H806D-100
Size: 4″
*High Corrosion-Resistance
The whole valve body is made of Stainless Steel to ensure the corrosion-resistance.
* Superior Sealing
Normally with FKM sealing gasket and can use PTFE sealing gaskets to ensures the large usage of the valve
* Second Gear Open
There are two gear open on the handle to set the flow rate according to demand
* New Structure
The whole valve body is made of new type of lift-draw style structure to ensure the high precision and high sealing
* Easy-Maintenance
Allows the sealing gasket to be replaced without removing the valve from the tank pipwork
| Technical Data: | |
|---|---|
| Nominal Pressure: | 0.6Mpa |
| Max flow rate: | 2500L/min |
| Material: | Stainless Steel 304 |
| Open method: | Mechanical |
| Temperature Range: | -20℃~+70℃ |
