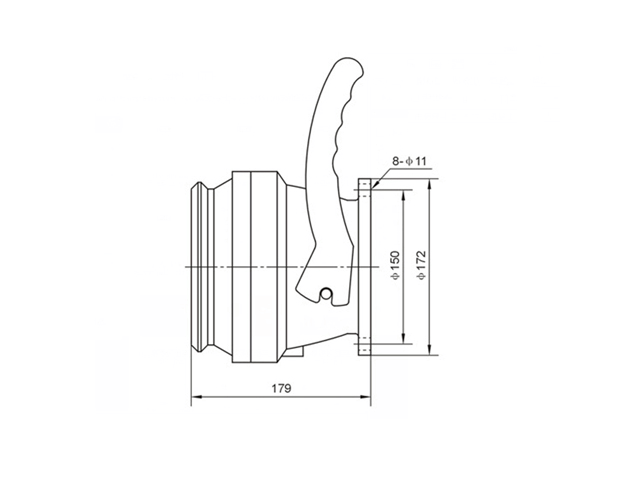

API adaptor valve C806C-100
Size: 4″
* Hardening Treatment
The whole valve body is passed a special hardening process to improve its service life.
* Second Gear Open
When do the handle open, there are two stalls to set the flow rate according to the customers’ demand.
* Standardized Size
Interface dimension is designed according to the API RP1004 standard, docking with the standard API connector.
* Light Weight
The main body is made of aluminum alloy, it is more light and sturdy.
* Superior Process Performance
Reasonable design for the less pressure differences ensures the large input and output flow rate.
* With the Sight Glass
Convenient to observe the inner working situation.
* Foundation for Interlock Valve
When install the interlock valve, the API Adaptor can be controlled by air.
* Easy- Maintenance
When in the situation of no need to replace the valve, just to replace the sealing gasket.
Technical Data:
Nominal Pressure: 0.6Mpa
Max flow rate: 2500L/min
Material: Aluminum Alloy
Open method: Mechanical
Temperature Range: -20℃~+70℃
